Treating kidney stones within the kidney itself

The frequency of nephrolithiasis has risen significantly over the past years. Dr. Michael Straub explains various procedures for treating stones in the kidney itself.

Sometimes, a patient will initially consult a specialist for other symptoms, such as high blood pressure. The specialist then determines that the patient has a stone in his kidney and refers him to us. Subsequent diagnosis is then carried out here using ultrasound and a CT scan.

What different options for the treatment of kidney stones do you offer patients at your clinic?

Dr. Straub: Before embarking on any therapy, we need to remember that very many small stones, around 80 percent of all stones with a diameter of less than four millimetres, are passed without the need for an operation. Immobile stones that are not simply passed are usually located in a renal calyx or in the peripheral areas of the bladder.

Up until the early 2000s, lithotripsy was the predominant therapy for stones. Here, the kidney stones are broken up into small pieces with shock waves. These then exit the body when the patient urinates. The disadvantage of this method is that not all patients pass the material particularly well.

Nowadays, we recommend endoscopic stone treatment in most cases. This can be done in the form of what is known as a ureterorenoscopy, in which the natural passages in the body are used to pass through the bladder and ureter into the renal cavity system.

This endoscopic procedure can be done with a rigid endoscope or with a flexible endoscope, which allows a better view of the calices at the top of the kidney. If the stone in the kidney is too large for a flexible endoscopy, we perform a percutaneous endoscopy, commonly known as nephrolitholapaxy (or percutaneous nephrolithotomy). In this procedure, the renal cavity system is surgically punctured to open a passage through which an endoscope is inserted into the kidney. Nowadays, endoscopes are available with a diameter of less than four millimetres, which means that we can also treat kidney stones very atraumatically with percutaneous procedures.

How is the stone removed from the kidney?

Dr. Straub: If the stone is not too large, we can use a nickel-titanium retrieval basket to remove it through the endoscope. Beyond that, lasers are now an integral part of modern stone therapy. A flexible fibre in principle allows the laser energy to be applied to any location in the urinary tract to break up the stone.

This technology has come on in leaps and bounds in recent years, with the latest generation of lasers having an immense power range from zero to 120 watts. The power and width of the individual pulses and the pulse frequency can all be precisely adjusted. If you use high power, a low pulse frequency and a fine, sharp laser pulse, you can break the stone down into three or four fragments exactly where you want, as if with a hammer and chisel.

You can then remove the fragments with the retrieval basket. Alternatively, you can use low power, a very high frequency and a wide pulse to pulverize the stone and then rinse it out. You can tailor the procedure precisely to the situation and the stone, and thus work in very different ways to offer the patient the best possible treatment.

What still needs to be done after the stone has been removed by ureterorenoscopy?

Dr. Straub: The patient is fitted with a catheter to ensure drainage through the urinary tract. Here at the Klinikum rechts der Isar, we take the approach of where possible keeping the patient in the clinic for one or two nights with a long-ended single loop ureteral stent and then, after pulling out this stent, to discharge the patient free of stones and tubes. We do this in easily half of all cases.

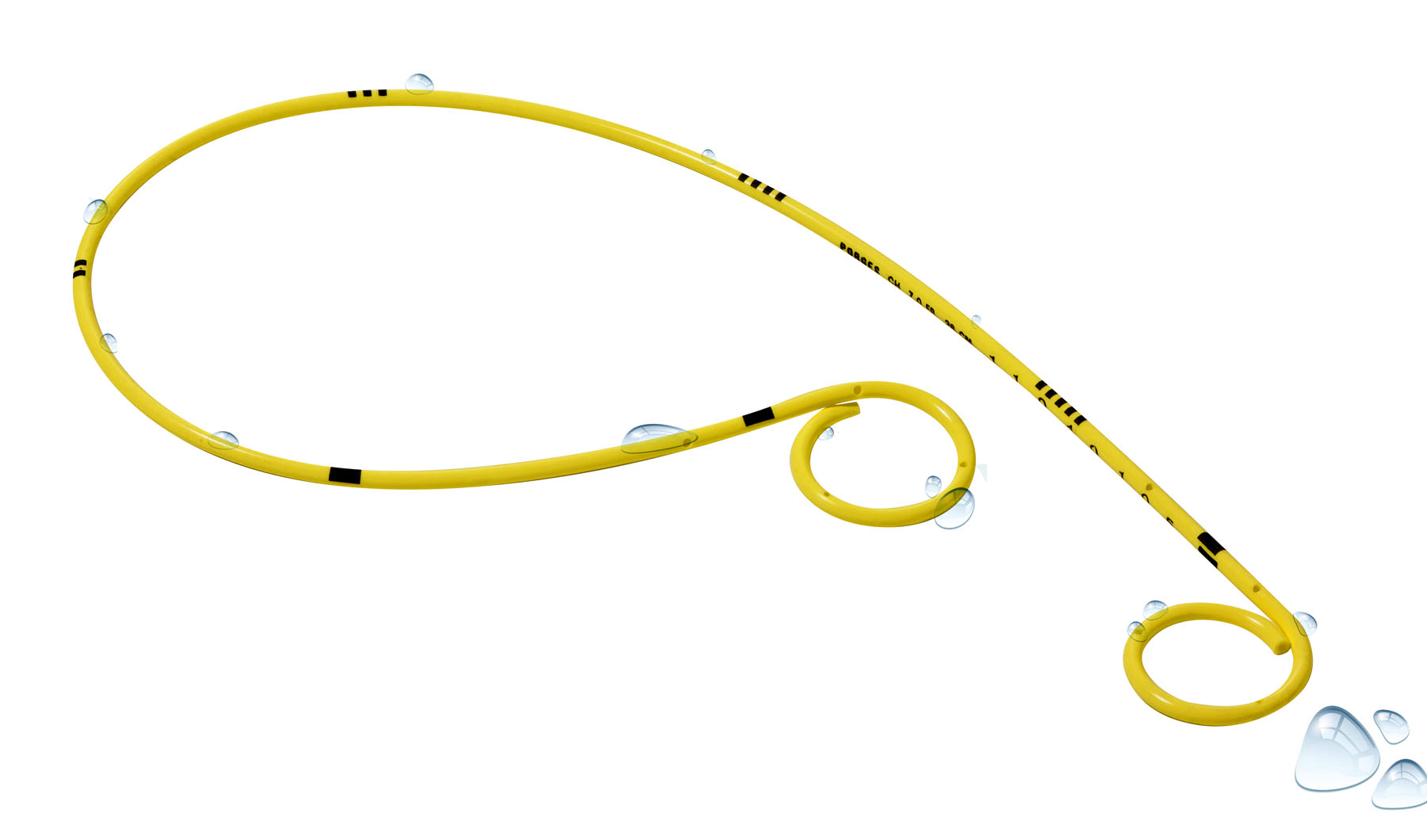

With other patients, we cannot dispense with the drainage after just two days, whether it be because they have a narrow ureter, or because they still have residual fragments or they have suffered from fever during the treatment. In such cases, we fit them with a double loop ureteral stent, for instance from the Biosoft^® range, which can then be removed after the end of therapy or when it needs to be replaced using the flexible, single use cystoscope Isiris^®, which has an integrated grasper.
